In Stock
BT512365
The Outdoor Board Outdoor Wall Mount Antenna
Request Quote
Get Catalog
Point at the cool image of our stuff to zoom
In Stock
BT512365

The Outdoor Board Outdoor Wall Mount Antenna

So easy to install, you’ll be up boosting in minutes.

  • Directional outdoor antenna
  • Easy, DIY installation
  • 60-75° directional beam
  • Covers 698-2700MHz cellular bandwidths, all cellular carriers
  • Up to +8 dBi of gain
Request Quote
Get Catalog

It’s strong, stylish, and can be easily mounted on a wall or pole. The Outdoor Board’s your easy install, high power option.

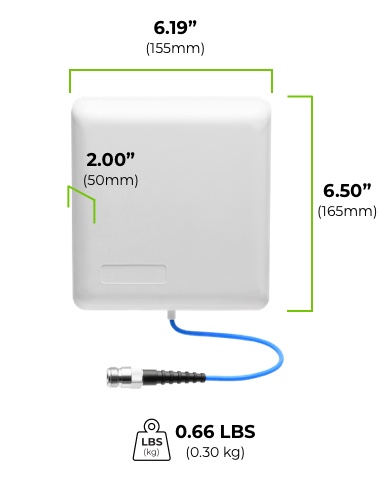

The Outdoor Board is a simple, flat, white outdoor panel antenna. It gets its name because it looks like a board, and it belongs outdoors. Really not too much mystery there.

What The Outdoor Board REALLY does is capture cellular signal. It captures in a 60-75° directional beam, making this a relatively easy install for a directional antenna. It gives more power than the All-Rounder omni-antenna, but somewhat less than the Quicksilver Yagi. It can also be mounted to a wall or placed on a pole for more installation options.

The Outdoor Board is designed for fixed building installations outside a home, office, or commercial space. It has 50-ohm impedance and attached coax with N-Female termination.

The Bolton Technical Outdoor Board panel antenna works with all cell phone signal boosters (weBoost, WilsonPro), and cellular hotspots (Pepwave, MoFi, Netgear Nighthawk, etc).

You have questions. We have answers.

When Should I Buy the Outdoor Board?

The Outdoor Board offers more gain than the omnidirectional All-Rounder, but less than the Quicksilver Yagi and far less than the specialized Arrow and Long Ranger antennas. Get The Outdoor Board for its simple installation and high value for what it brings. It is also a better option for hitting several cell towers at once in a general direction, so if boosting numerous carriers is your priority, the Outdoor Board is a better option than any other directional antenna.

Bear in mind that The Outdoor Board is a 50 Ohm antenna with an N-Female termination, meaning it works with 50 Ohm cable with an N-Male termination.

What Kinds of Signal Does the Outdoor Board Capture? What Radio Bandwidths?

The Outdoor Board captures any signal between the 698-2700 MHz bandwidths. That includes all 4G and LTE cellular signal. This covers all African mobile networks including Ghana (MTN, Vodafone, Airtel, Tigo and Busay), Botswana (Bemobile, Mascom, Orange), Namibia (MTC, tn Mobile), Zambia (MTN, Airtel, Zamtel) and far more.

What Does dB Mean? What About Gain?

dB refers to the power gain of the antenna, and the higher the number, the more powerful the antenna. As dB is measured on a logarithmic scale, every +3 dB represents a doubling of the power gain.

Will the Outdoor Board Work with My Carrier?

The Outdoor Board will work on any African of US carrier. If you are not sure your country’s carrier will work with The Outdoor Board, verify whether your service falls within the 698-2700 MHz bandwidth, and if so, it will work.

I’m Wanting to Boost Multiple Carriers at a Time. Will the Outdoor Board Do That?

It will. However, it’s best pointed at a specific tower. If the carrier you want captured is not represented on that tower, you’ll need another donor antenna to capture it.
